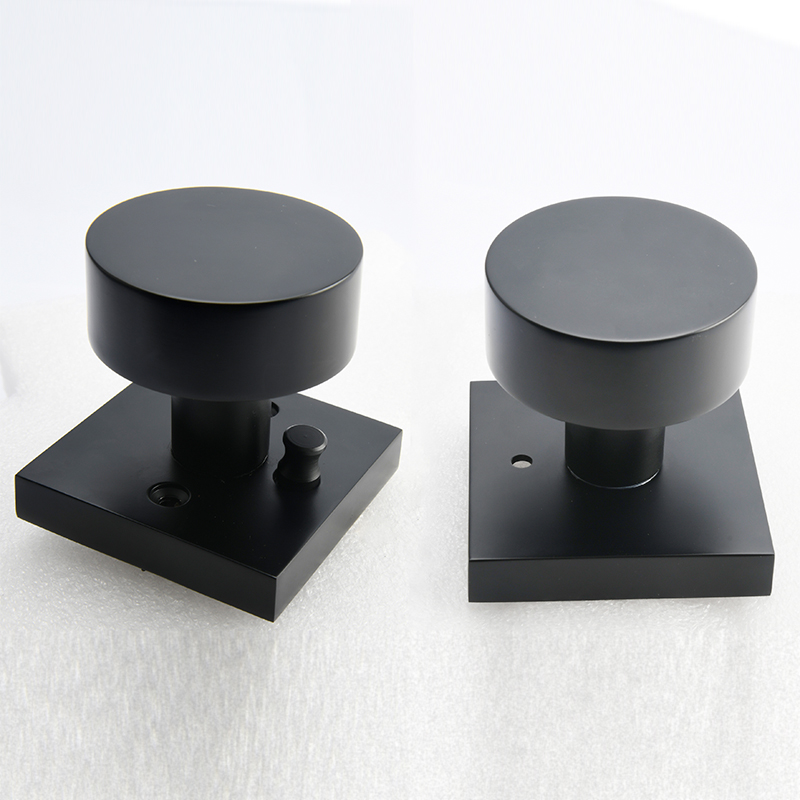

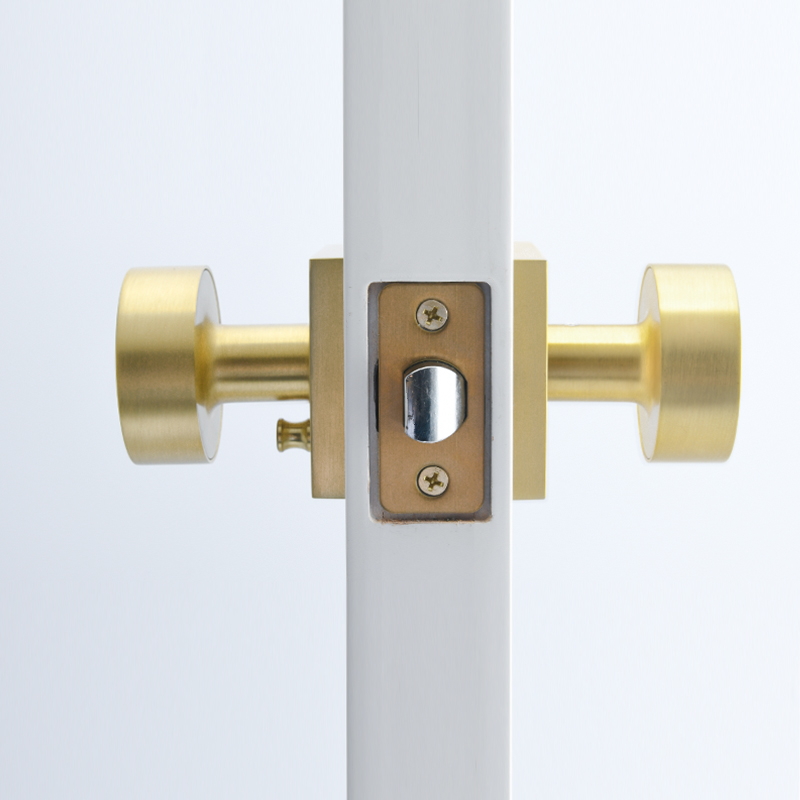

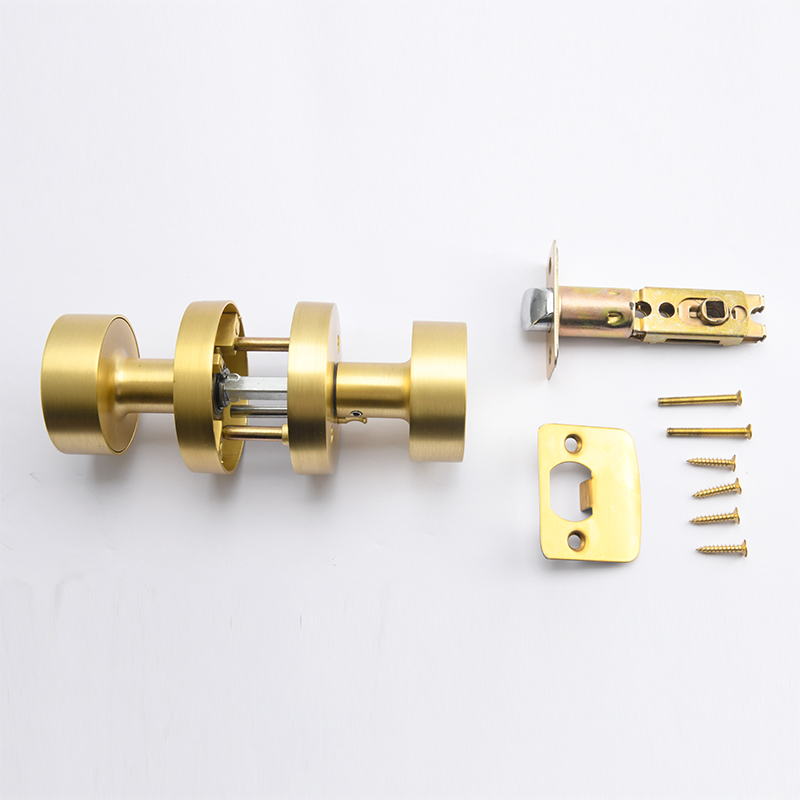

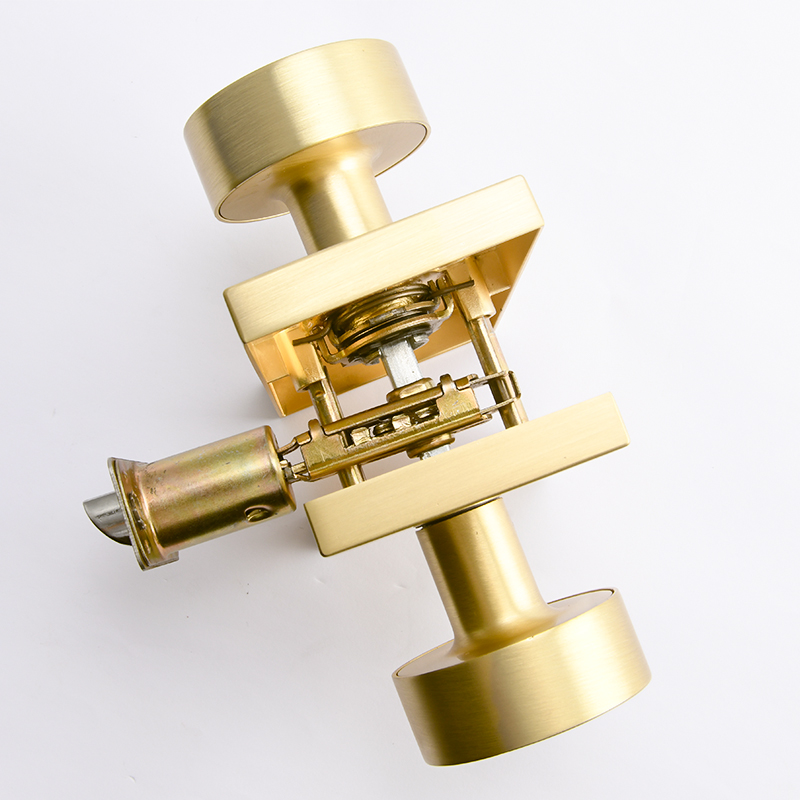

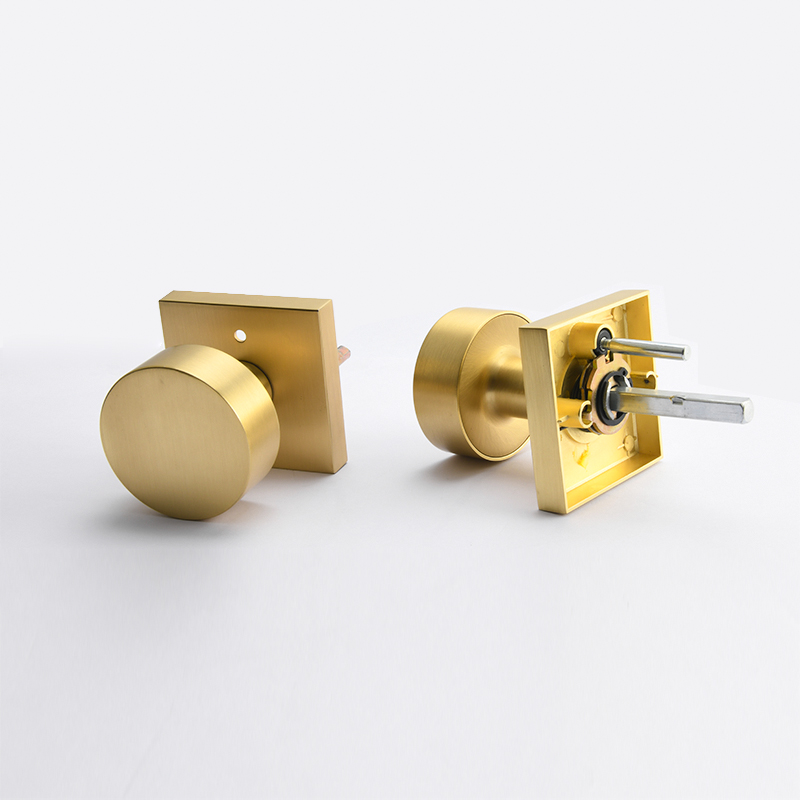

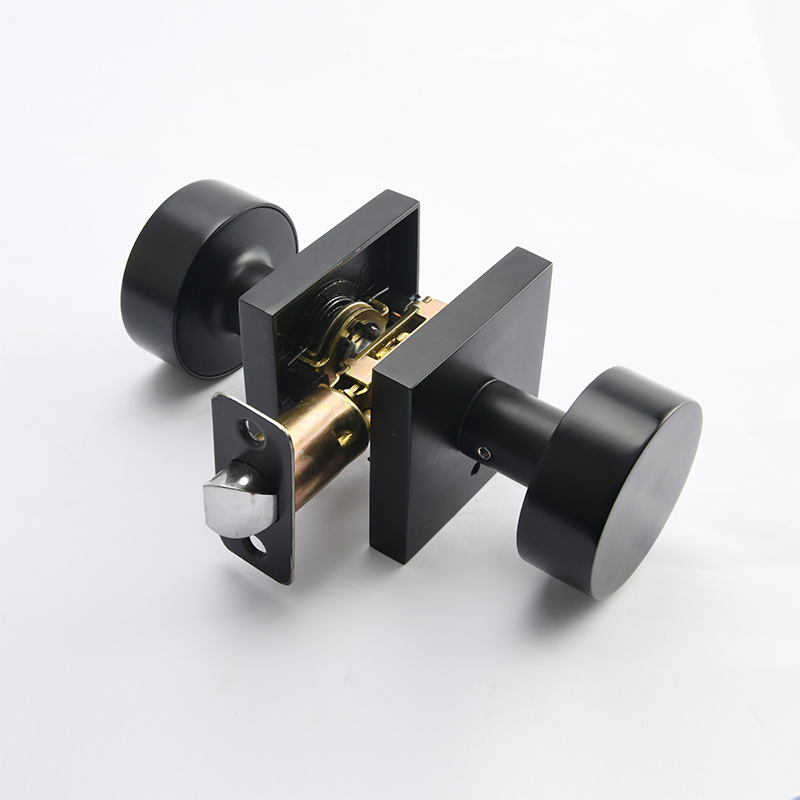

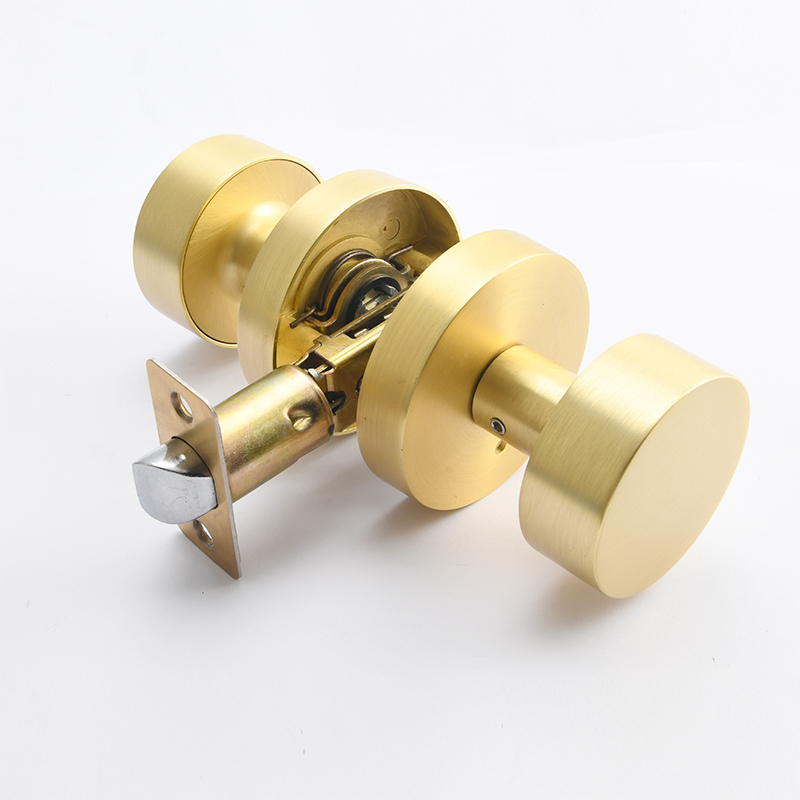

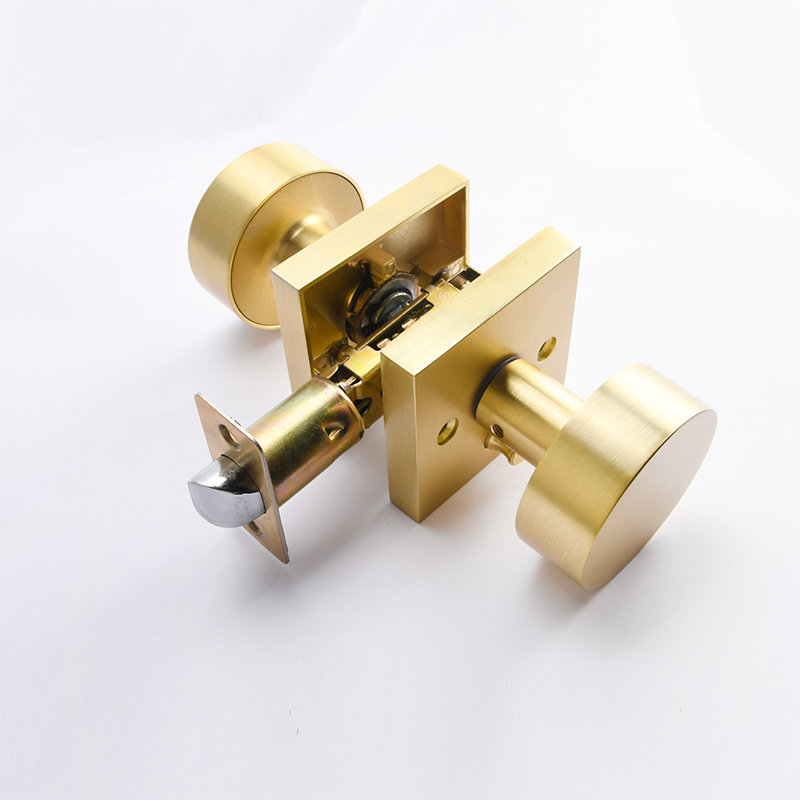

508L20-509L20 Tubular Knob Set
Model:508L20-509L20
Function:Entrance, Privacy, Passage, Dummy
Finish:MB, SSS, SC
Material:Stainless Steel Knob, Rose with Steel Mounting Rose
Door Thickness:1-3/8"(35mm) to 1-3/4"(45mm)
Cylinder:SC keyway Brass Cylinder, other Keyway be optional
Backset and Latch/Lockbody:2-3/4"(70mm) and 2-3/8"(60mm) adjustable latch
Handing:Reversible Left or Right
Faceplate:Square or Round Corner
Strikes:Square or Round Corner
Cross Bore:2-1/8"(54mm)
Edge Bore: 1"(25.4mm)
- Parameters
Model:508L20-509L20
Function:Entrance, Privacy, Passage, Dummy
Finish:MB, SSS, SC
Material:Stainless Steel Knob, Rose with Steel Mounting Rose
Door Thickness:1-3/8"(35mm) to 1-3/4"(45mm)
Cylinder:SC keyway Brass Cylinder, other Keyway be optional
Backset and Latch/Lockbody:2-3/4"(70mm) and 2-3/8"(60mm) adjustable latch
Handing:Reversible Left or Right
Faceplate:Square or Round Corner
Strikes:Square or Round Corner
Cross Bore:2-1/8"(54mm)
Edge Bore: 1"(25.4mm)
