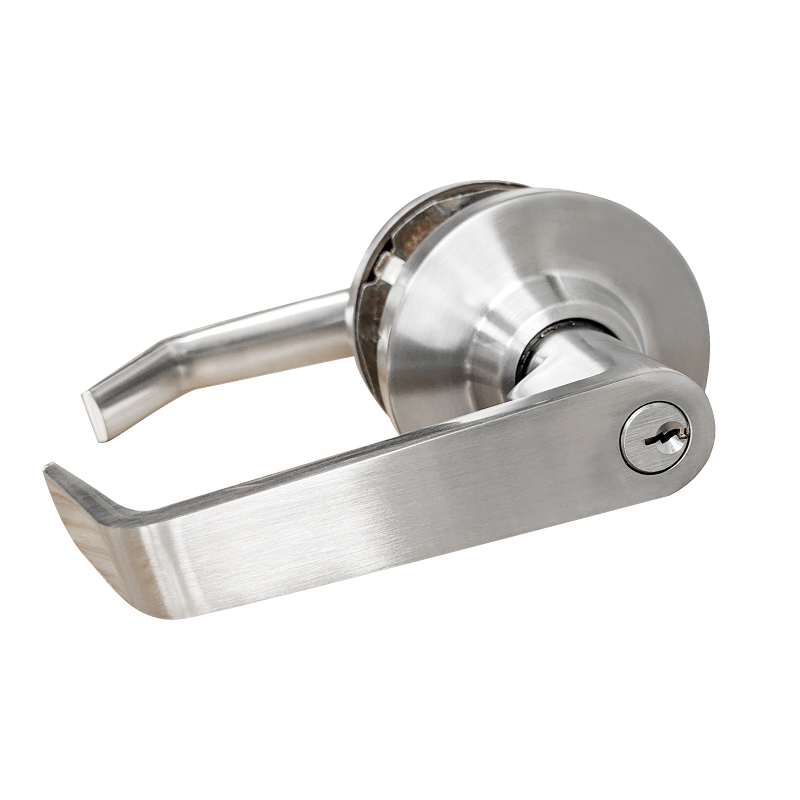

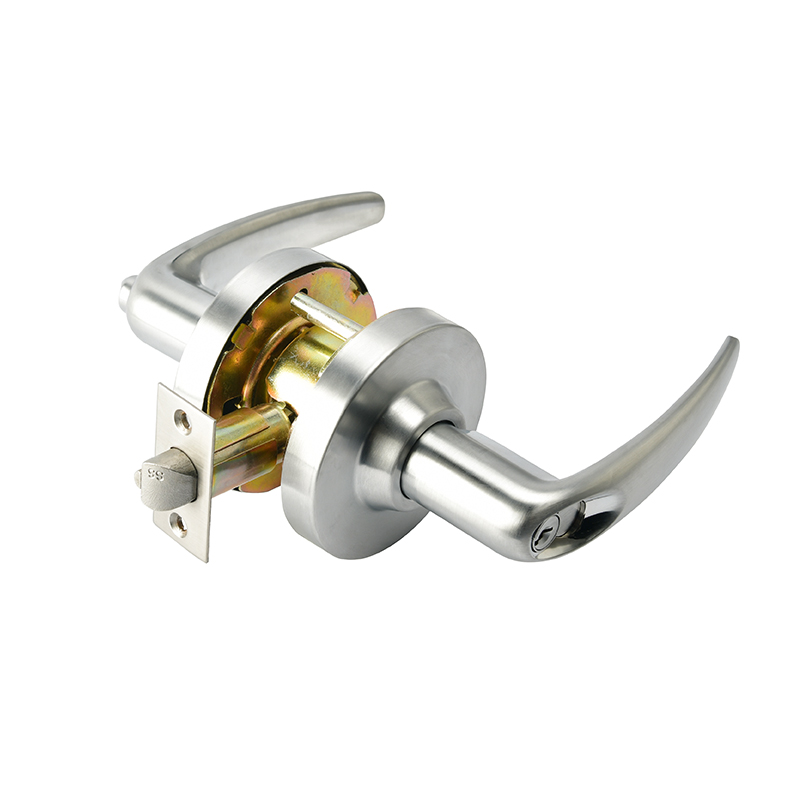

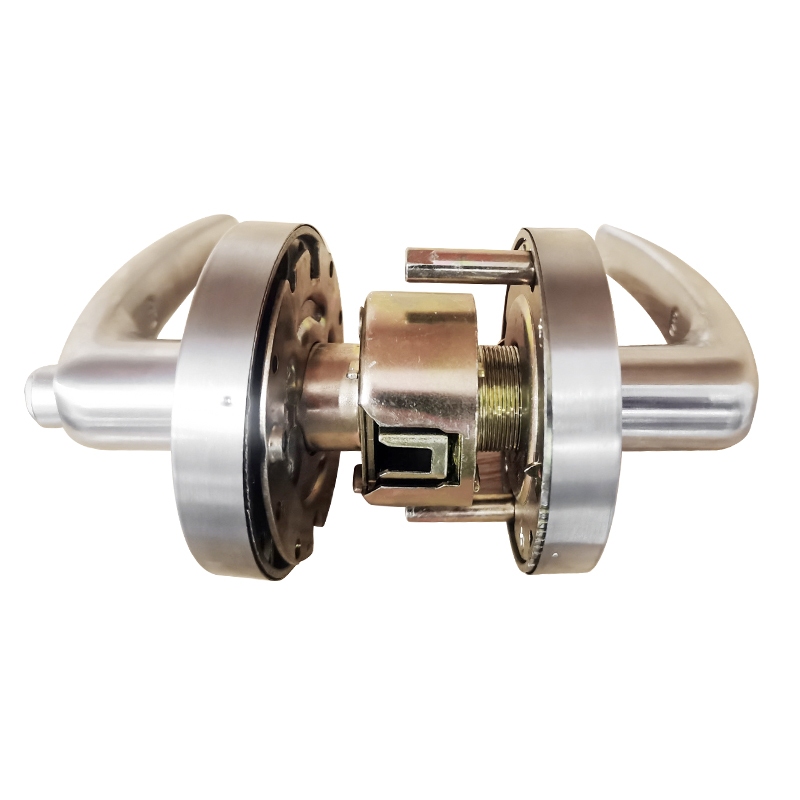

1000 series ANSl Grade 1
Model: 1000 series
Function:Entrance(F81), Privacy(F76), Passage(F75), Storeroom(F86), Classroom(F84) Communicating(F80), Connecting
Finish:SC, MB, PVD

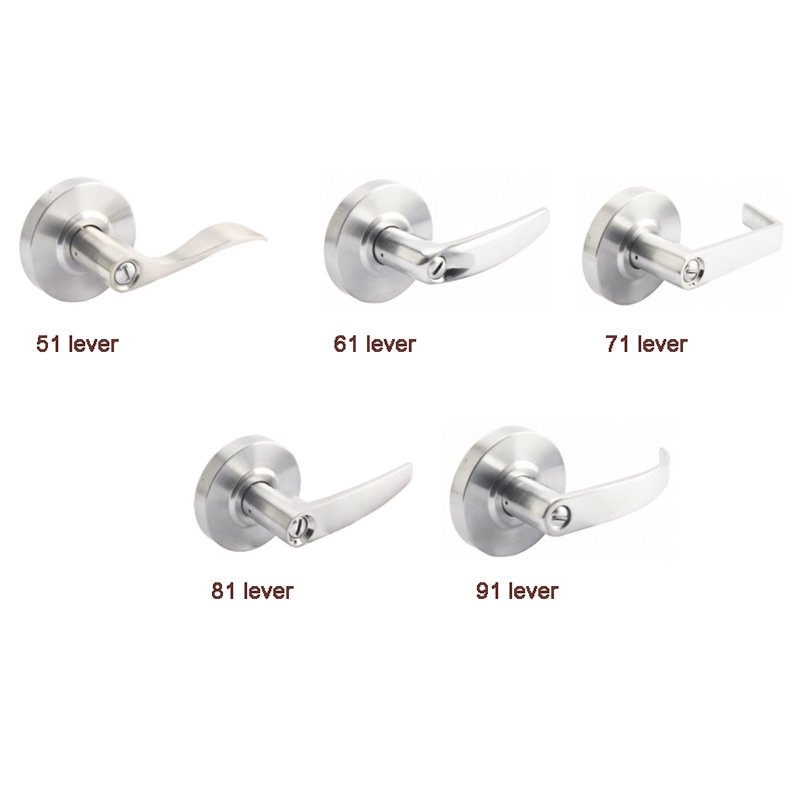

Material:Zinc Lever, ￠90mm(3-1/2'') SUS304 Rose with Zinc Mounting Rose
Door Thickness: 1-1/2"(38mm) to 1-3/4"(45mm), max 1-31/32"(50mm)
Cylinder: SC keyway 6 PIN Brass Cylinder, other Keyway be optional

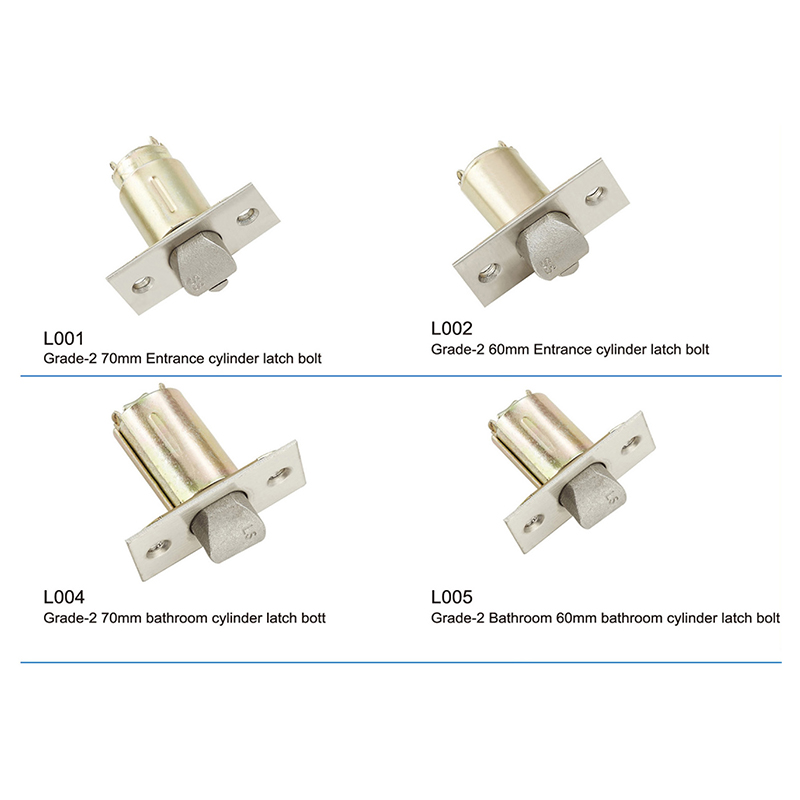

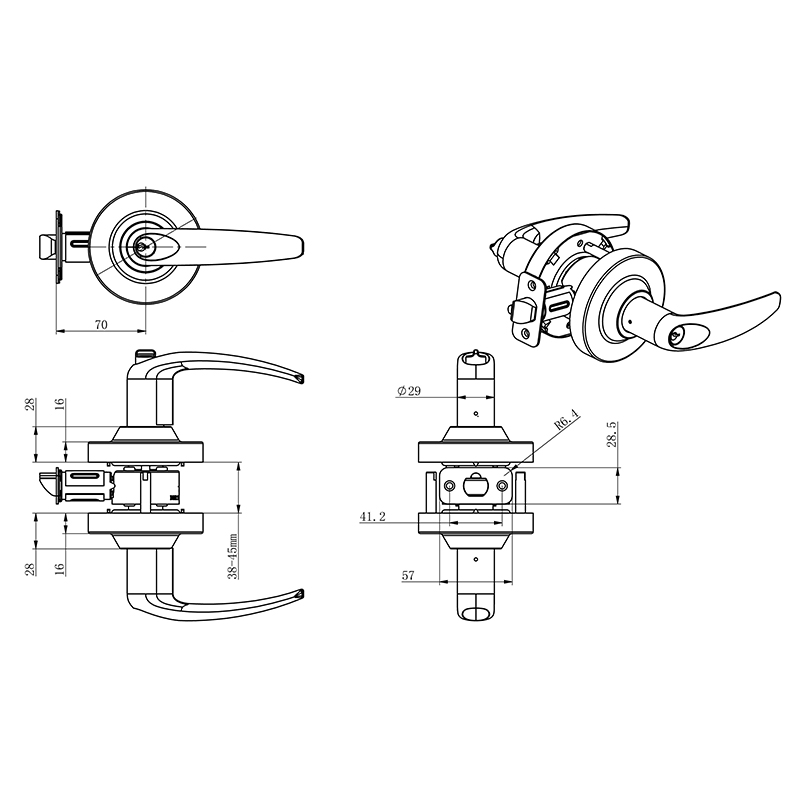

Backset and Latch/Lockbody:2-3/4"(70mm) and 2-3/8"(60mm) un-adjustable cylindrical latch
Handing:Reversible Left or Right
Faceplate:Square or Round Corner
Strikes:T-style or ASA
Cross Bore:2-1/8"(54mm)
Edge Bore: 1"(25.4mm)
- Parameters
Model: 1000 series
Function:Entrance(F81), Privacy(F76), Passage(F75), Storeroom(F86), Classroom(F84) Communicating(F80), Connecting
Finish:SC, MB, PVD
Material:Zinc Lever, ￠90mm(3-1/2'') SUS304 Rose with Zinc Mounting Rose
Door Thickness: 1-1/2"(38mm) to 1-3/4"(45mm), max 1-31/32"(50mm)
Cylinder: SC keyway 6 PIN Brass Cylinder, other Keyway be optional
Backset and Latch/Lockbody:2-3/4"(70mm) and 2-3/8"(60mm) un-adjustable cylindrical latch
Handing:Reversible Left or Right
Faceplate:Square or Round Corner
Strikes:T-style or ASA
Cross Bore:2-1/8"(54mm)
Edge Bore: 1"(25.4mm)
077701 ANSI G1 Deadbolt
